FlyAngela
CubeSat High Reliability On Board Computer (OBC)

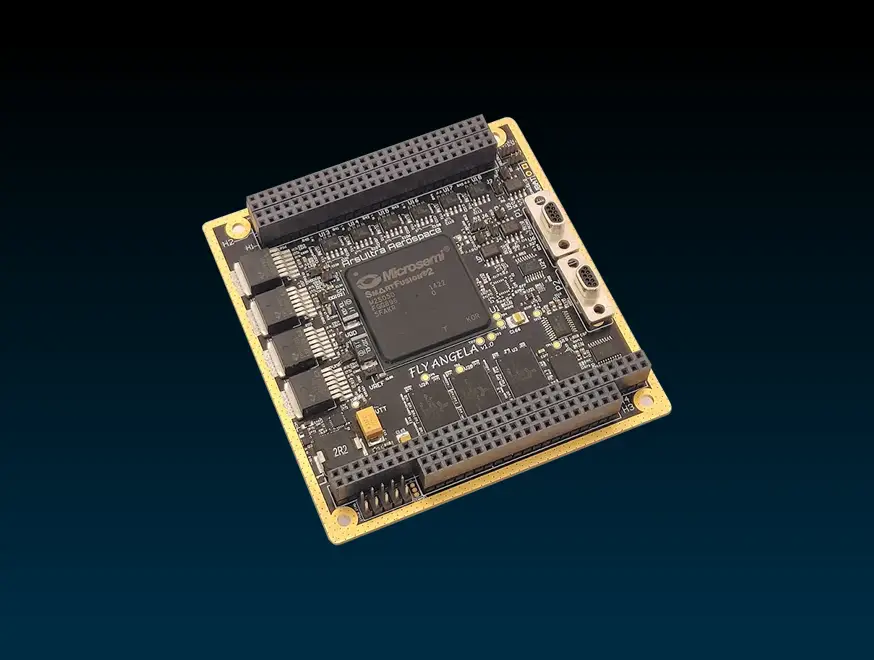

Overview
FlyAngela is an onboard computer for multiple applications. With Automotive grade chips used in power and memory components and PC104-PLUS format is ideal for CubeSat applications. She has integrated accelerometer, gyroscope, magnetometer and temperature sensors. Her variety of interfaces makes her suitable for a wide variety of missions. She has CAN, SPI, I2C, RS422/RS485, GPIO and also optional SPACEWIRE.

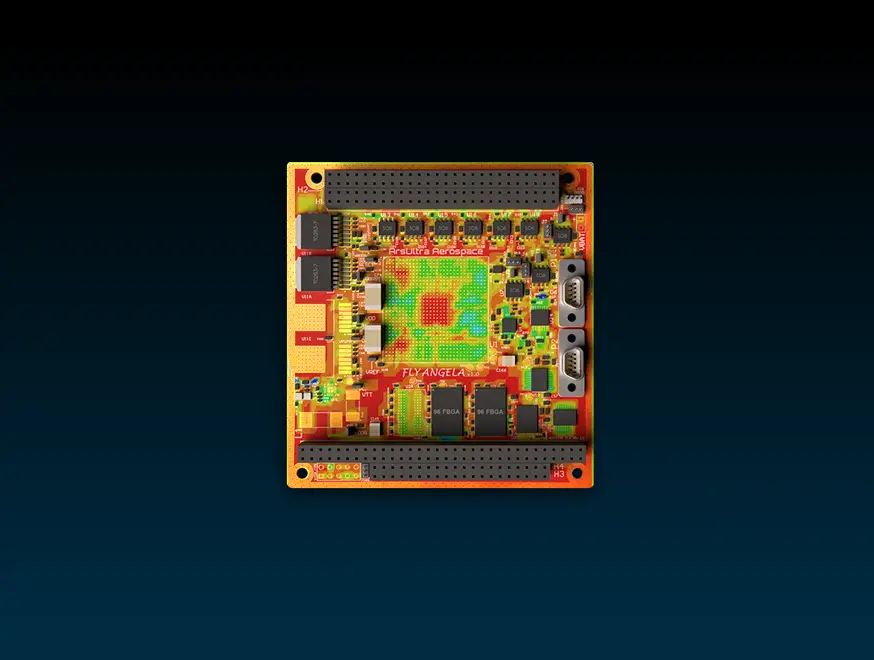

1.1. PROCESSOR
- FPGA Smart Fusion2 SoC embedded Cortex-M3 processor @ 24 to 125 MHz user defined clock.

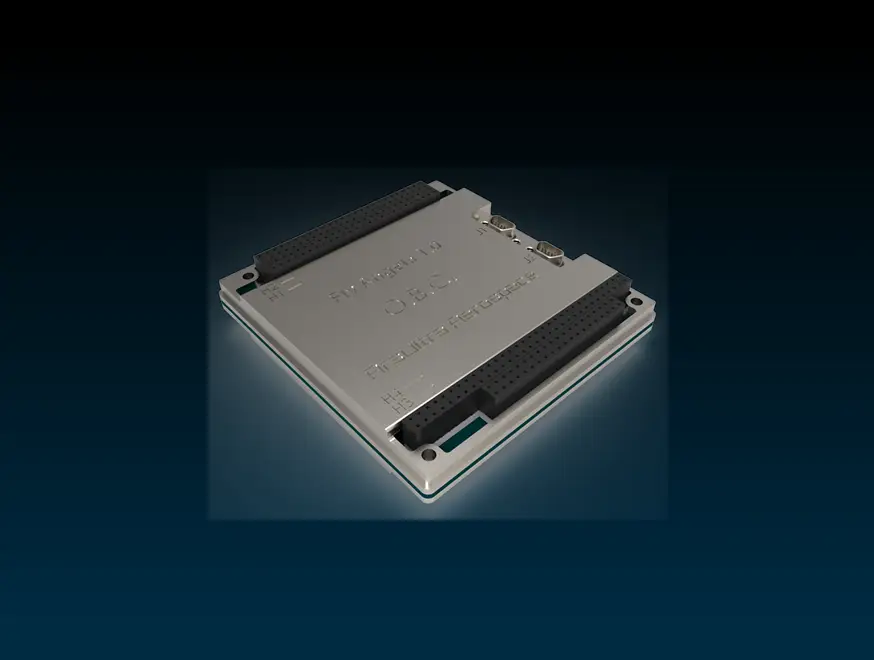

1.2. MEMORY
- 4Gb 32 bits DDR3 SDRAM & EDAC protected memory
- Embedded SRAM & EDAC protected memory
- SEU protection
- 256Mb NOR FLASH

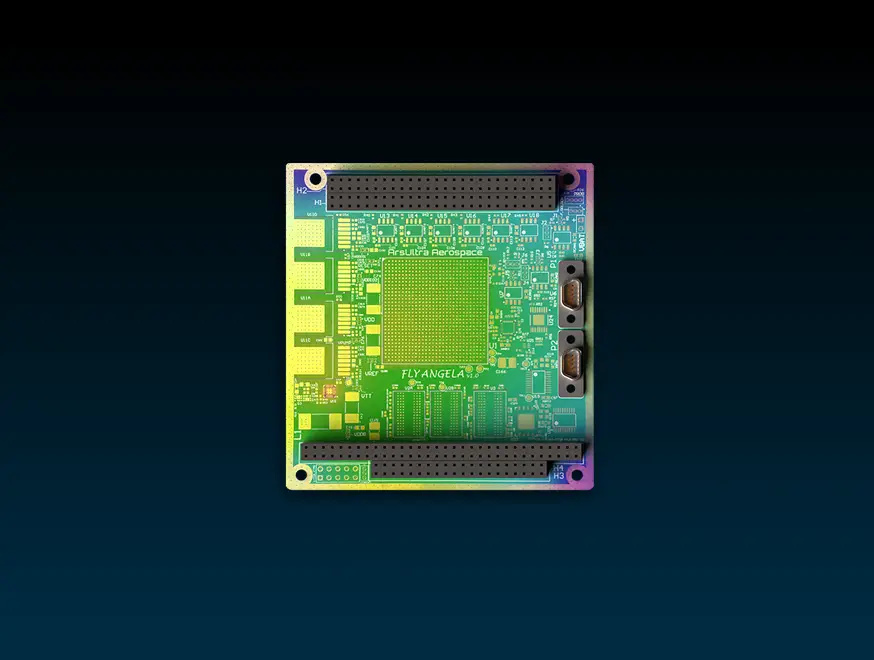

1.3. INTERFACES
- PC/104 Plus Format
- CubeSat Kit BUS Compatible
- PWM drivers for magnetorquers
- Interfaces: 3x CAN, 6x UART, 2x I2C, 2x SPI
- 2x SpaceWire (optional)
- 16x GPIO
- JTAG

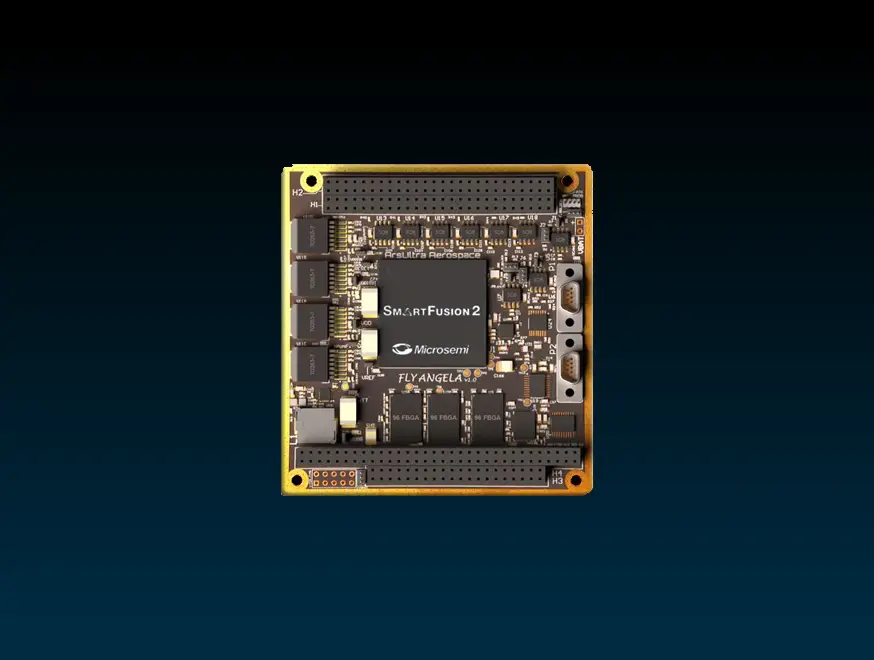

1.4. SENSORS INTEGRATED
- Accelerometer, Gyroscope, Magnetometer
- Temperature

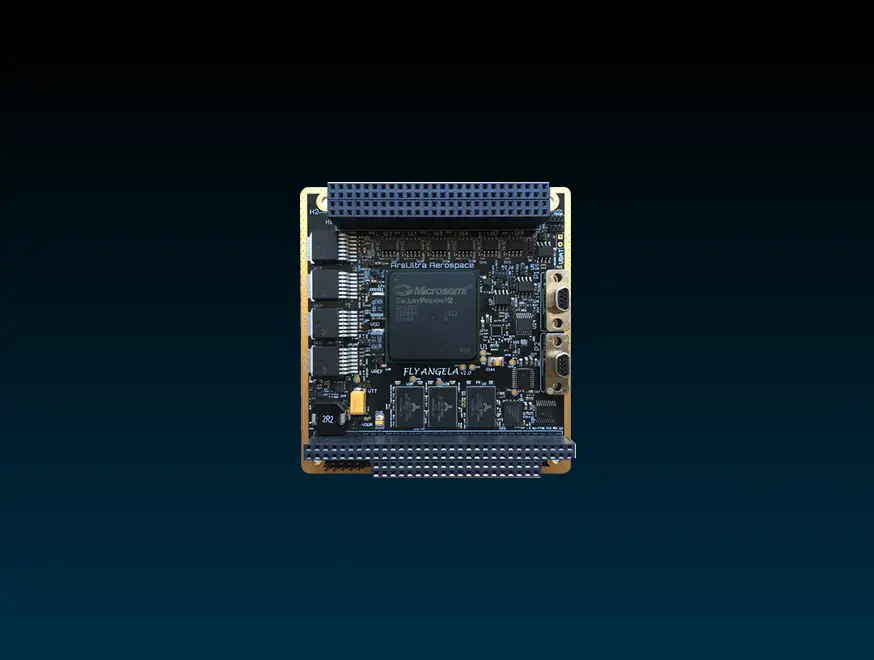

1.5. OTHERS
- Automotive power regulation
- Real Time Clock
- Automotive RAM, ROM and power regulation
- FPGA Smart Fusion2 MS025/MS050
- Embedded Cortex-M3. (Another IP Core could be flashed)
- 2MB Program Memory Size; 256kB RAM for M4, 2MB RAM for M7; 2048kB flash memory;
- 4Gbit DDR3 SDRAM with EDAC (ECC). (2G x 32 bits)
- 256Mbit Automotive NOR Flash Memory (Industrial grade optional)
- Weight: 80 grs. std, 98grs. w/SpW connectors.
